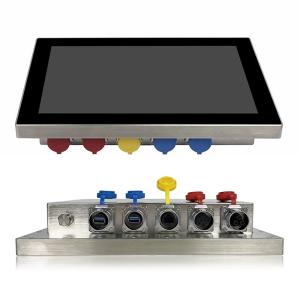

High Pressure IP69K Waterproof HMI Panel PC 12" with stainless steel 304
Feature
The inox PC is particularly suitable for applications in food & beverage, chemical and pharmaceutical markets. The stainless-steel chassis and a true flat frontal with Multitouch Projected Capacitive touchscreen, assure protection from dirt, water, scratches and an intensive use by the operator, even in the harshest areas.
1. 12" TFT LED with 10 points capacitive touch
2. Intel Core i5-6200U Dual Core 2.5GHz
3. LP-24 I/O Ports: VGA/LAN/USB/COM/RS232/RS485
4. Full IP66/69K sealed to providing 360 degree protection
5. DC12V~24V Input (+9V～36V wide voltage optional)

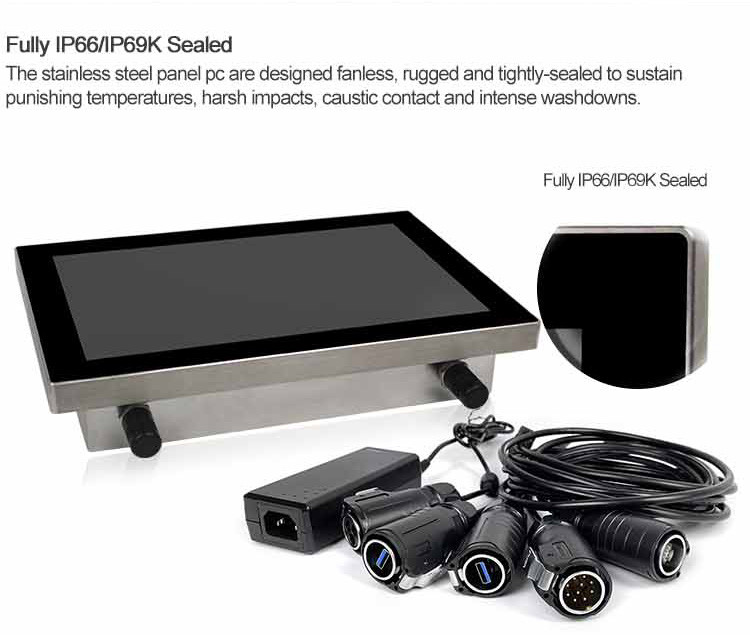

6. Fully sealed and fanless design, full IP69K waterproof, Sealed I/O with cable set included.
7. CE, FCC, RoHS, IP69K Compliance
8. Industrial LCD panel is wide viewing angle with high nits and true color.
| WPC-P012WCC |
| System | CPU | Intel Core i5-6200U Dual Core 2.5GHz |
| L2 Cache | 3MB |
| Chipsets | Intel 6th Skylake-U SOC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics 520 |
| Network | Intel® i211 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) |
| USB | 4 x USB ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Display Brightness | 450 cd/m2 |
| Contrast Ratio | 700:1 |
| Colors | 16.7M , 76% NTSC |
| Response Time | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥6H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | Material | Stainless Steel SUS304 |
| Color | Polished brushed surface |

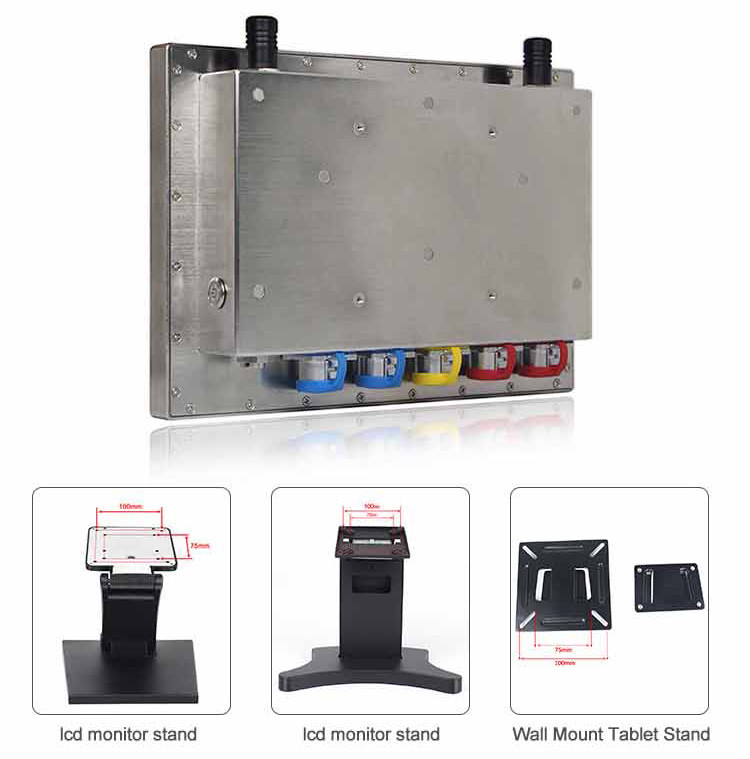

| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP66 / IP69K |
| Product Dimension | 312 x 214 x 55 mm |
| Cut-out Size | / |
| Packing Size | 450 x 170 x 350 mm |
| Gross Weight | 7.0 KG |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦25W |
Product Advantage:
1. It can reduce product and labor cost, with the unparalleled accuracy and repeatability;
2. It can ensure the quality and process control;
3. Superior information processing capabilities and advanced computer control systems;
4. The application of advanced robots and the integration of vision technology;
5. Safer and more reliable hygiene requirements.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
Product Tags:
|
|
SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc Images
|
